General

The HELICA TPS stem design is based on the principles of a bone sparing procedure and the metaphysical anchorage of short stems established in the huma medicine.

It fulfills all requirements on a modern implant. The stem implant achieves an immediate primary stability and secures the stable anchorage required for osteointegration.

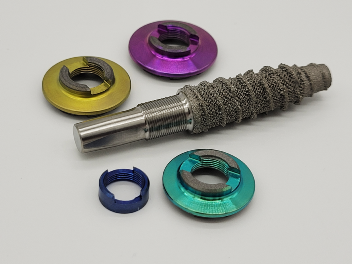

Modular Design

The different anatomic situations of the dysplastic and arthrotic hip joint require variable stem sizes for best implant fit.

Modularity of the stem implant is absolutely critical here.

The five stem sizes can be combined with three different flange sizes to fulfill these essential requirements.

The specifically developed surgical technique allows seating of the flange completely gap-free on the surface of the femoral neck osteotomy, in order to optimize load transfer.

axially symmetrically tapered thread

Titanium alloy (TiAl6V4, ISO 5832-3,

US-Standard ASTM  F136)

rough blasted

ø08x31

ø09x32

ø10x35

ø11x37

ø12x39

self-tapping threads

ongrowth and formation of bone stock

ø18.5mm, ø20.0mm, ø21.5mm

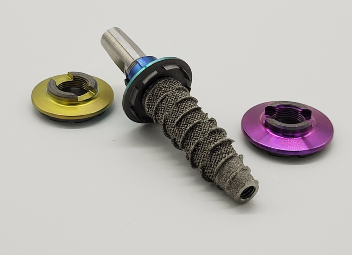

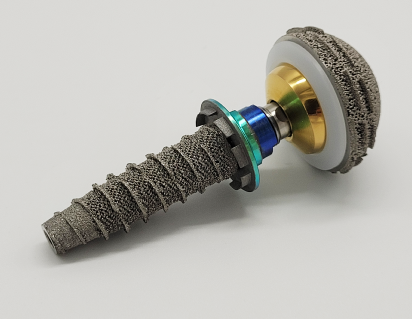

HELICA TPS Stem

cementless

HELICA TPS Short Stem,

cementless and Bone sparing

Shaft

Geometry:

Material:


Surface:

Stem Sizes:

Biomechanics

Primary Anchorage:

Secondary Anchorage:

Flange

Sizes:

Instruments

Surgery

Technique

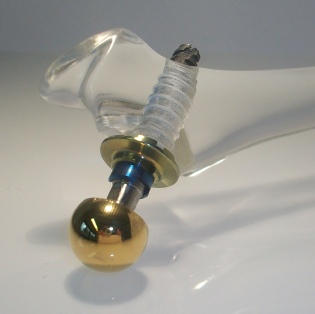

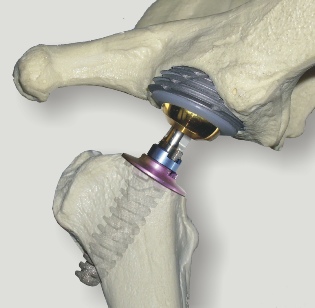

Closely mimics the normal hip joint biomechanics

Features

Low risc of femoral fractures

Easy implantation procedure

Short learning curve

Revisable

High primary stability

Adjustable to the individual anatomy due to its modularity

Delivery condition: Sterile, ready to use out of the box.

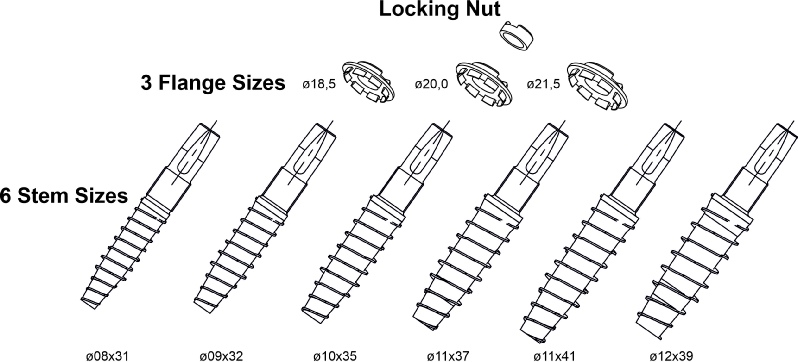

5 Stem Sizes:

3 Flange Sizes:

Locking Nut:
