Material:

Coating:

Sizes:

CoCrMo-Alloy ISO 5832-4

Titanium porous coating, TiN

30mm, 34mm, 38mm, 42mm

UHMW-PE ISO 5834-2

3mm and 7mm

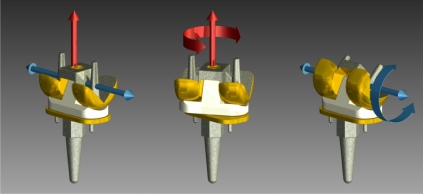

Range of Motion: Flexion - Extension

Axes of Movement

Primary Anchorage:

Secondary Anchorage:

press-fit and screw fixation

ongrowth and formation of bone stock

The assembled joint contains three articulating components.

The torsion unconstraining is ensured by using the mobile bearing feature.

Mobile Bearing: Rotation

Biomechanics

Femoral and Tibial Components

Material:

Thickness:

Inlay

GenuSys Knee

cementless

Characteristics

The use of knee prostheses and implants in human orthopedics has greatly improved the quality of life of many patients.

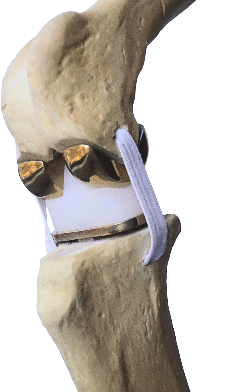

The GenuSys Knee is a total cementless canine implant system, which allows a full and natural range of motion with high stability against luxation.

Three articulating components ensure a minimum of constraining forces and wear according to the mobile bearing principals.


The Instruments include a set of easy to use gauges which indicates the correct angle and location of the required bone resection planes and axis.

The system allows the surgeon to adjust intraoperatively the ligament tensions to minimize luxation and enable to find best fit.

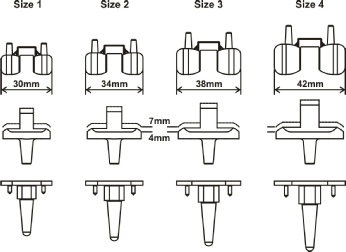

The knee components are available in four sizes.

Each tibial inlay size is available in two thicknesses.

Instruments

Surgery

Technique

Properties

cementless

mobile bearing mechanism

luxation secure

intra-operatively adjustable

short learning curve

Delivery condition: Sterile, ready to use out of the box.
