Characteristics

The “screw-in” procedure is easy to perform and allows a controlled implantation from the first turn.

The self-tapping threads anchor the cup in the cancellous and cortical bone for a high primary bone anchorage and optimal seating.

The high primary stability allows the use of the cup in difficult anatomic conditions.

In addition to the thread anchor-mechanism, the trabecular-like surface contains an optimal loomen characteristic for bone ongrow.

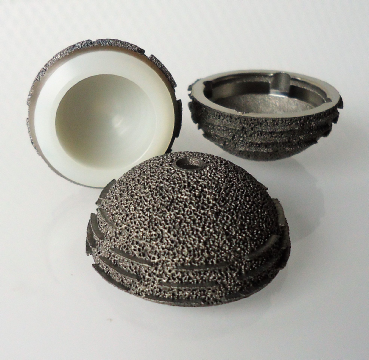

Screw Cup SL

cementless

Cementless Solution

for Highest Performance

The acetabular Screw Cup procedure is successfully performed worldwide in the human range for many years. The Screw Cup SL with its unique design has been adapted for the specific needs in veterinary orthopedic THR surgery.

Surgery

Technique

Instruments

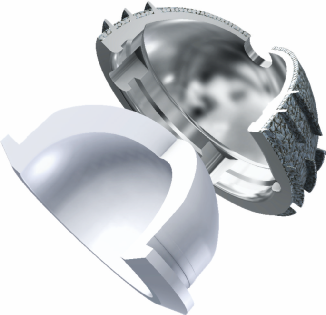

Inlay

Geometry:

Material:


hemispheric

Titanium alloy (TiAl6V4, ISO 5832-3,

ASTM  F1472, ASTM B348)

trabecular-like, by Selective Laser Melting procedure

hemispheric

high density Polyethylen (UHMW-PE,  ISO 5834-2,

US-Standard ASTM F648

Screw Cup  SL

Geometry:

Material:


Surface:

Biomechanics

Primary Anchorage:

Secondary Anchorage:

self-tapping threads

ongrowth and formation of bone stock


Cup Instruments

Delivery condition: Sterile, ready to use out of the box.

High primary stability

Properties

Low risk of acetabular fracturing

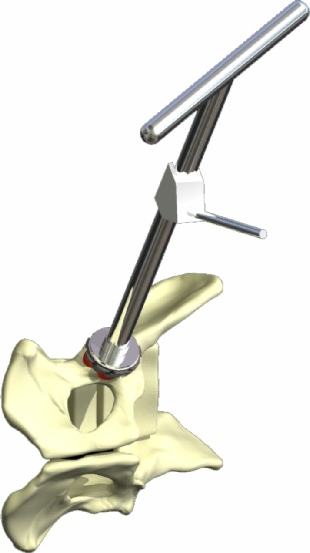

Easy and controlled implantation by screw-in procedure

Relocatable

Fits in difficult anatomic conditions because of tight thread anchor-mechanism

Can be combined with all common other systems

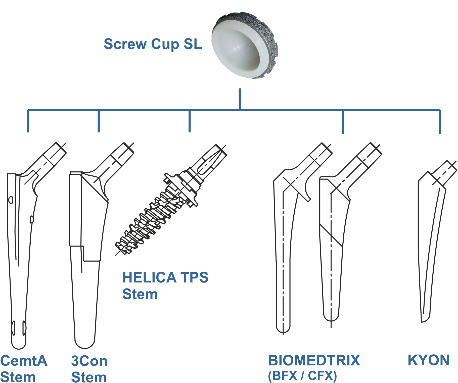

Compatibility of the Screw Cup SL:

Contact

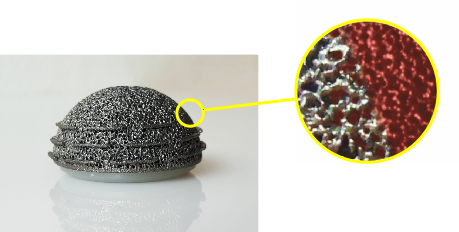

trabecular-like surface

Trabecular-like surface
